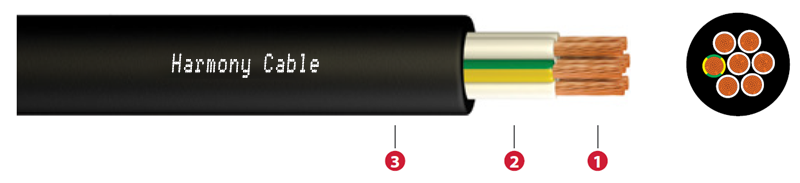

Constructions
| 1-Conductor | Fine-stranded copper (Class 5) |
| 2-İnsulation | Oil resistant polyvinyl chloride |
| 3-Outer sheath | Oil resitant polyvinyl chloride |
A05VV-F
Specifications
| Min. bending radius | D<8 ise 4xD, 8<D<12 ise 5xD, D>12 ise 6xD |
| Maks. operating temperature | 60° |
| Maks. short circuit temperature | 150° |
| Rated voltage Uo/U | 300/500 kV |
| Ac test voltage | 2 kV |
| Flame propagation tesr on single cable | EN 60332-1 |
| Min. operating temperature Flexing/Fixed | -5°/-15° |
Technical Data
| Nomial Cross Section mm² | Overall Diameter mm Approximately | Net Weight kg/km Approximately | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in |
| Air (A) | ||||
| TTR KUMANDA (300/500 V) | ||||
| 6×0.75 | 8,9 | 121 | 26,0 | 9,1 |
| 8×0.75 | 8,9 | 126 | 26,0 | 9,1 |
| 8×0.75 | 9,9 | 154 | 26,0 | 9, |
| 10×0.75 | 11,8 | 213 | 26,0 | 9,1 |
| 12×0.75 | 12,2 | 233 | 26,0 | 7,0 |
| 14×0.75 | 12,8 | 260 | 26,0 | 7,0 |
| 16×0,75 | 13,5 | 290 | 26,0 | 6,3 |
| 19×0.75 | 14,6 | 341 | 26,0 | 6,3 |
| 21×0.75 | 15,3 | 378 | 26,0 | 6,3 |
| 24×0.75 | 16,3 | 429 | 26,0 | 4,9 |
| 30×0.75 | 19,5 | 742 | 26,0 | 4,9 |
| 36×0.75 | 20,9 | 858 | 26,0 | 4,9 |
| 6×1 | 9,3 | 142 | 19,5 | 12 |
| 7×1 | 9,5 | 153 | 19,5 | 10,4 |
| 8×1 | 10,6 | 186 | 19,5 | 10,4 |
| 10×1 | 12,4 | 249 | 19,5 | 10,4 |
| 12×1 | 12,8 | 273 | 19,5 | 8 |
| 14×1 | 13,4 | 305 | 19,5 | 8 |
| 16×1 | 14,6 | 355 | 19,5 | 8 |
| 19×1 | 15,3 | 401 | 19,5 | 7,2 |
| 21×1 | 16,1 | 445 | 19,5 | 7,2 |
| 24×1 | 17,6 | 522 | 19,5 | 5,6 |
| 30×1 | 20,4 | 856 | 19,5 | 5,6 |
| 36×1 | 21,9 | 993 | 19,5 | 5,6 |
| 6×1,5 | 10,7 | 192 | 13,3 | 13,5 |
| 7×1,5 | 10,9 | 206 | 13,3 | 11,7 |
| 8×1,5 | 12,4 | 258 | 13,3 | 11,7 |
| 10×1,5 | 14,4 | 340 | 13,3 | 9,0 |
| 12×1,5 | 14,9 | 374 | 13,3 | 9,0 |
| 14×1,5 | 15,6 | 419 | 13,3 | 9,0 |
| 16×1,5 | 16,4 | 470 | 13,3 | 8,1 |
| 19×1,5 | 17,3 | 532 | 13,3 | 8,1 |
| 21×1,5 | 19,5 | 799 | 13,3 | 8,1 |
| 24×1,5 | 21,5 | 973 | 13,3 | 6,3 |
| 30×1,5 | 23,4 | 1166 | 13,3 | 6,3 |
| 36×1,5 | 25,5 | 1377 | 13,3 | 6,3 |
| 42×1,5 | 34,2 | 2673 | 13,3 | 5,4 |
| 50×1,5 | 37,2 | 2944 | 13,3 | 5,4 |
| 6×2,5 | 13,1 | 295 | 7,98 | 19,5 |
| 7×2,5 | 13,1 | 310 | 7,98 | 16,9 |
| 8×2,5 | 14,7 | 379 | 7,98 | 16,9 |
| 10×2,5 | 17,0 | 498 | 7,98 | 16,9 |
| 12×2,5 | 17,6 | 552 | 7,98 | 13,0 |
| 14×2,5 | 18,5 | 725 | 7,98 | 13,0 |
| 16×2,5 | 20,7 | 936 | 7,98 | 13,0 |
| 19×2,5 | 22,2 | 1059 | 7,98 | 11,7 |
| 21×2,5 | 23,3 | 1184 | 7,98 | 11,7 |
| 24×2,5 | 25,6 | 1428 | 7,98 | 6,8 |
| 30×2,5 | 28,0 | 1719 | 7,98 | 5,9 |
| 36×2,5 | 30,1 | 2003 | 7,98 | 5,9 |
Applications
Used cable ducts and underground, interior and exterior applications that there are not much mechanical compulsion.
