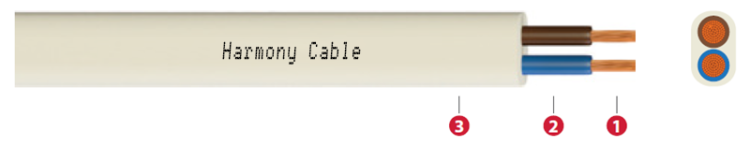

Constructions
| 1-Conductor | Fine-stranded copper (Class 5) |
| 2-Insulation | Polyvinyl chloride (PVC) |
| 3-Outer sheath | Polyvinyl chloride (PVC) |
H03VVH2-F / H05VVH2-F
Specifications
| Min. bending radius | D≤12 ise 5D – D>12 ise 6D |
| Max. operating temperature | 60° |
| Max. short circuit temperature | 150° |
| Rated voltage | 300/300 V – 300/500V |
| AC test voltage | 2 kV |
| Flame propagation test on single cable | EN 60332-1 |
| Lead free | Pb |
Technical Data
| Nominal Cross Section mm² | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in |
| Air (A) | ||||
| H03VVH2-F (300/300 V) / 219Y | ||||
| 2×0,50 | 3,1 x 5,0 | 30 | 39,0 | 3 |
| 2×0,75 | 3,4 x 5,5 | 37 | 26,0 | 6 |
| H05VVH2-F (300/500 V) / 319Y | ||||
| 2×0,75 | 4,0 x 6,3 | 47 | 26,0 | 6 |
| 2×1 | 4,1 x 6,6 | 54 | 19,5 | 10 |
| 2×1,5 | 4,7 x 7,6 | 73 | 13,3 | 16 |
| 2×2,5 | 5,6 x 9,1 | 108 | 7,98 | 25 |
| 2×4 | 6,3 x 10,4 | 150 | 4,95 | 32 |
| 3×0,75 | 4,0 x 8,7 | 66 | 26,0 | 6 |
| 3×1 | 4,1 x 9,1 | 76 | 19,5 | 10 |
| 3×1,5 | 4,7 x 10,5 | 103 | 13,3 | 16 |
| 3×2,5 | 5,8 x 12,9 | 108 | 7,98 | 25 |
| 3×4 | 6,5 x 14,7 | 220 | 4,95 | 32 |
Applications
Used as connection cables,in dry and humid placesthatthere are not much mechanical compulsion which are generally used in household equipments.
