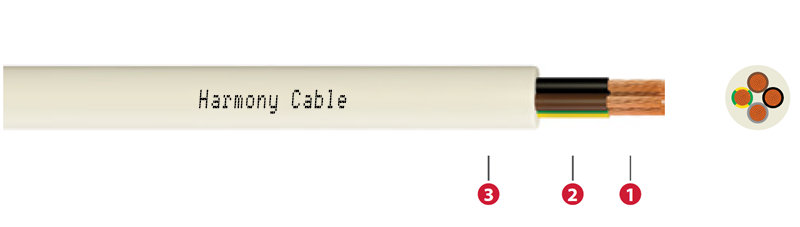

Constructions
| 1-Conductor | Fine-stranded copper (Class 5) |
| 2-Insulation | Cross linkable polyethylene (XLPE) |
| 3-Outer sheath | Low smoke zero halogen (LSZH) |
052XZ1-F
Specifications
| Min. bending radius | D≤12 ise 5xD – D>12 ise 6xD |
| Max. operating temperature | 90° |
| Max. short circuit temperature | 250° |
| Rated voltage Uo/U | 300/300 V – 300/500 V |
| AC test voltage | 2 kV |
| Low smoke | EN 61034 |
| Halogen free | EN 50525-1 EN 50267 |
| Flame propagation test on single cable | EN 60332-1 |
Technical Data
| Min. bending radius | D≤12 ise 5xD – D>12 ise 6xD |
| Max. operating temperature | 90° |
| Max. short circuit temperature | 250° |
| Rated voltage Uo/U | 300/300 V – 300/500 V |
| AC test voltage | 2 kV |
| Low smoke | EN 61034 |
| Halogen free | EN 50525-1 EN 50267 |
| Flame propagation test on single cable | EN 60332-1 |
Applications
Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, populated business centers where there is a risk of fire.
