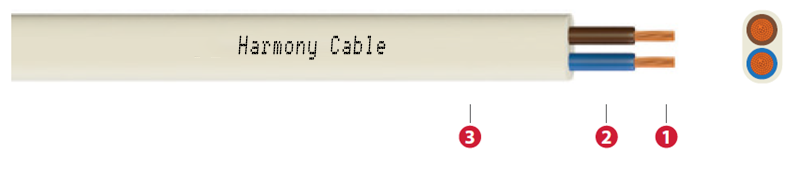

Constructions
| 1-Conductor | Fine-stranded copper (Class 5) |
| 2-Insulation | High temperature resistant polyvinyl chloride (HR-PVC) |
| 3-Outer sheath | High temperature resistant polyvinyl chloride (HR-PVC) |
H03V2V2H2-F / H05V2V2H2-F
Specifications
| Min. bending radius | D≤12 ise 5D – D>12 ise 6D |
| Max. operating temperature | 90° |
| Max. short circuit temperature | 150° |
| Rated voltage | 300/300 V – 300/500 V |
| AC test voltage | 2 kV |
| Flame propagation test on single cable | EN 60332-1 |
Technical Data
| Nominal Cross Section mm² | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in |
| Air (A) | ||||
| H03V2V2H2-F (300/300V) / 209Y | ||||
| 2×0,50 | 3,1×5,0 | 30 | 39,0 | 3 |
| 2×0,75 | 3,4×5,5 | 37 | 26,0 | 6 |
| H05V2V2H2-F (300/500 V) / 309Y | ||||
| 2×0,75 | 4,0×6,3 | 47 | 26,0 | 6 |
| 2×1 | 4,1×6,6 | 54 | 19,5 | 10 |
| 2×1,5 | 4,5×7,4 | 70 | 13,3 | 16 |
Applications
Low voltage household appliances under less mechanical compulsion in high temperature environments.
