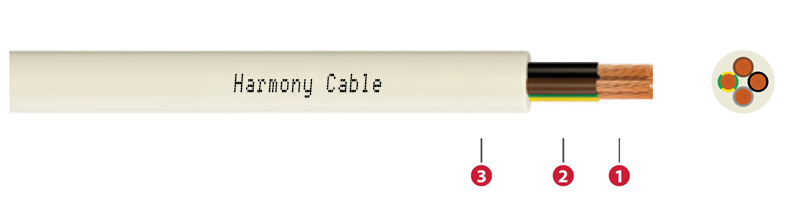

Constructions
| 1-Conductor | Fine-stranded copper (Class 5) |
| 2-Insulation | Low smoke zero halogen (LSZH) |
| 3-Outer sheath | Low smoke zero halogen (LSZH) |
H03Z1Z1-F/H05Z1Z1-F
Specifications
| Min. bending radius | D≤12 ise 5xD – D>12 ise 6xD |
| Max. operating temperature | 60° |
| Max. short circuit temperature | 150° |
| Rated voltage | 300/300 V – 300/500 V |
| AC test voltage | 2 kV |
| Low smoke | EN 61034 |
| Halogen free | EN 50525-1 EN 50267 |
| Flame propagation test on single cable | EN 60332-1 |
Technical Data
| Nominal Cross Section mm² | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in |
| Air (A) | ||||
| H03Z1Z1-F (300/300 V) | ||||
| 2×0,50 | 5,0 | 40 | 39,0 | 3 |
| 2×0,75 | 5,5 | 50 | 26,0 | 6 |
| 3×0,50 | 5,3 | 44 | 39,0 | 3 |
| 3×0,75 | 5,8 | 54 | 26,0 | 6 |
| 4×0,50 | 5,8 | 54 | 39,0 | 3 |
| 4×0,75 | 6,4 | 68 | 26,0 | 6 |
| H05Z1Z1-F (300/500 V) | ||||
| 2×0,75 | 6,3 | 57 | 26,0 | 6 |
| 2×1 | 6,6 | 65 | 19,5 | 10 |
| 2×1,5 | 7,4 | 84 | 13,3 | 16 |
| 2×2,5 | 9,1 | 130 | 7,98 | 25 |
| 2×4 | 10,4 | 180 | 4,95 | 32 |
| 3×0,75 | 6,7 | 68 | 26,0 | 6 |
| 3×1 | 7,0 | 78 | 19,5 | 10 |
| 3×1,5 | 8,1 | 107 | 13,3 | 16 |
| 3×2,5 | 9,9 | 164 | 7,98 | 25 |
| 3×4 | 11,3 | 228 | 4,95 | 32 |
| 4×0,75 | 7,3 | 83 | 26,0 | 6 |
| 4×1 | 7,9 | 101 | 19,5 | 10 |
| 4×1,5 | 9,0 | 134 | 13,3 | 16 |
| 4×2,5 | 10,8 | 201 | 7,98 | 25 |
| 4×4 | 12,3 | 281 | 4,95 | 32 |
| 5×0,75 | 8,1 | 102 | 26,0 | 6 |
| 5×1 | 8,6 | 121 | 19,5 | 10 |
| 5×1,5 | 10,0 | 166 | 13,3 | 16 |
| 5×2,5 | 12,0 | 250 | 7,98 | 25 |
| 5×4 | 13,9 | 366 | 4,95 | 32 |
Applications
Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, populated business centers where there is a risk of fire.
