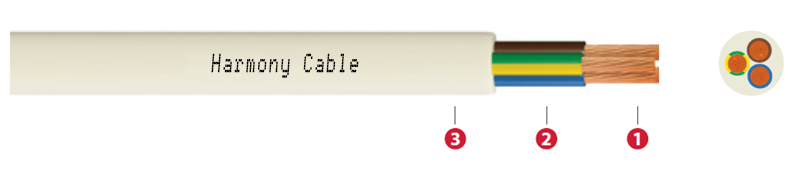

Constructions
| 1-Conductor | Fine-stranded copper (Class 5) |
| 2-İnsulation | Polyvinyl chloride (PVC) |
| 3-Outer sheath | Polyvinyl chloride (PVC) |
H05VV-F
Specifications
| Min. bending radius | D≤12 ise 5D – D>12 ise 6D |
| Max. operating temperature | 60° |
| Max. short circuit temperature | 150° |
| Rated voltage | 300/500 V |
| AC test voltage | 2 kV |
| Flame propagation test on single cable | EN 60332-1 |
| Lead free | Pb |
Technical Data
| Nominal Cross Section mm² | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in |
| Air (A) | ||||
| H05VV-F (300/500 V) / 318Y | ||||
| 2×0,75 | 5,9 | 55 | 26,0 | 6 |
| 2×1 | 6,3 | 64 | 19,5 | 10 |
| 2×1,5 | 7,2 | 87 | 13,3 | 16 |
| 2×2,5 | 8,9 | 133 | 7,98 | 25 |
| 2×4 | 10,9 | 184 | 4,95 | 32 |
| 3×0,75 | 6,3 | 65 | 26,0 | 6 |
| 3×1 | 6,7 | 75 | 19,5 | 10 |
| 3×1,5 | 7,8 | 106 | 13,3 | 16 |
| 3×2,5 | 9,6 | 163 | 7,98 | 25 |
| 3×4 | 11,0 | 226 | 4,95 | 32 |
| 4×0,75 | 6,8 | 77 | 26,0 | 6 |
| 4×1 | 7,4 | 93 | 19,5 | 10 |
| 4×1,5 | 8,7 | 131 | 13,3 | 16 |
| 4×2,5 | 10,5 | 197 | 7,98 | 25 |
| 4×4 | 12,0 | 275 | 4,95 | 32 |
| 5×0,75 | 7,8 | 97 | 26,0 | 6 |
| 5×1 | 8,3 | 113 | 19,5 | 10 |
| 5×1,5 | 9,9 | 164 | 13,3 | 16 |
| 5×2,5 | 12,8 | 248 | 7,98 | 25 |
| 5×4 | 13,6 | 347 | 4,95 | 32 |
Applications
Used in dry and humid areas that there are not much mechanical compulsion in which, generally used in household equipments.
Standarts
TS EN 50525-2-11
BS EN 50525-2-11
DIN EN 50525-2-11
IEC 60227.5
UK CODE: 318 Y
