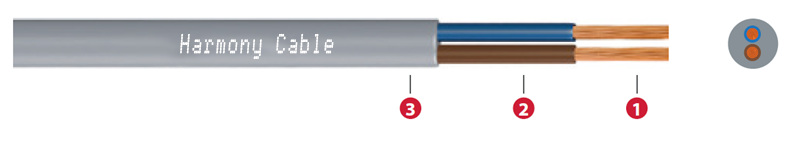

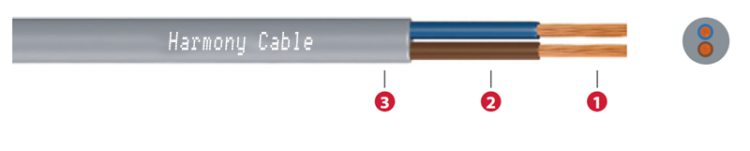

Constructions
| 1-Conductor | Fine-stranded copper (Class 5) |
| 2-İnsulation | Cross linkable polyethylene (XLPE) |
| 3-Outer sheath | Low smoke zero halogen (LSZH) |
YY-LSZH
Specifications
| Min. bending radius | D<8 ise 4xD, 8<D<12 ise 5xD, D>12 ise 6xD |
| Maks. operating temperature | 90° |
| Maks. short circuit temperature | 250° |
| Rated voltage Uo/U | 300/500 kV |
| Ac test voltage | 2 kV |
| Min. operating temperature Flexing/Fixed | -5°/-15° |
| Low smoke | EN 61034 |
| Halogen free | EN 50525-1 – EN 50267 |
| Flame retardant test of bunched cables | EN 60332-3-24 Cat. C |
Technical Data
| Nomial Cross Section mm² | Overall Diameter mm Approximately | Net Weight kg/km Approximately | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in |
| Air (A) | ||||
| YY-LSZH (300/500 V) | ||||
| 2×0,50 | 5,2 | 37 | 39,0 | 7 |
| 3×0,50 | 5,5 | 43 | 39,0 | 7 |
| 4×0,50 | 6,0 | 66 | 39,0 | 7 |
| 5×0,50 | 6,5 | 79 | 39,0 | 7 |
| 7×0,50 | 7,3 | 97 | 39,0 | 6 |
| 8×0,50 | 8,3 | |||
| 12×0,50 | 9,7 | 172 | 39,0 | 6,5 |
| 18×0,50 | 11,5 | 245 | 39,0 | 6 |
| 19×0,50 | 11,5 | 248 | 39,0 | 6 |
| 25×0,50 | 13,8 | 350 | 39,0 | 5 |
| 27×0,50 | 14,1 | 368 | 39,0 | 4 |
| 30×0,50 | 14,6 | 398 | 39,0 | 4 |
| 36×0,50 | 15,9 | 475 | 39,0 | 4 |
| 2×0,75 | 5,5 | 54 | 39,0 | 14 |
| 3×0,75 | 5,8 | 64 | 39,0 | 14 |
| 4×0,75 | 6,4 | 78 | 39,0 | 14 |
| 5×0,75 | 7,2 | 99 | 39,0 | 10,5 |
| 7×0,75 | 7,9 | 122 | 39,0 | 9,1 |
| 8×0,75 | 8,2 | |||
| 12×0,75 | 10,8 | 221 | 39,0 | 7,0 |
| 18×0,75 | 13,0 | 316 | 39,0 | 6,3 |
| 25×0,75 | 15,5 | 449 | 39,0 | 4,9 |
| 27×0,75 | 15,9 | 473 | 39,0 | 4,9 |
| 30×0,75 | 16,6 | 520 | 39,0 | 4,9 |
| 36×0,75 | 17,9 | 609 | 39,0 | 4,9 |
| 2×1 | 6,5 | 61 | 19,5 | 16 |
| 3×1 | 7 | 75 | 19,5 | 16 |
| 4×1 | 7,5 | 94 | 19,5 | 16 |
| 5×1 | 8,5 | 113 | 19,5 | 12 |
| 6×1 | 9,0 | 135 | 19,5 | 12 |
| 7×1 | 11 | 155 | 19,5 | 10,4 |
| 12×1 | 12,5 | 256 | 19,5 | 8 |
| 18×1 | 15 | 374 | 19,5 | 7,2 |
| 19×1 | 15,1 | 381 | 19,5 | 7,2 |
| 25×1 | 18 | 521 | 19,5 | 5,6 |
| 27×1 | 17,7 | 551 | 19,5 | 5,6 |
| 30×1 | 18,5 | 605 | 19,5 | 5,6 |
| 34×1 | 20,2 | 707 | 19,5 | 5,6 |
| 36×1 | 21,5 | 720 | 19,5 | 5,6 |
| 3×1,5 | 8,2 | 107 | 13,3 | 18 |
| 4×1,5 | 9,1 | 135 | 13,3 | 18 |
| 5×1,5 | 10,4 | 173 | 13,3 | 13,5 |
| 6×1,5 | 10,7 | 190 | 13,3 | 13,5 |
| 7×1,5 | 13 | 220 | 13,3 | 11,7 |
| 10×1,5 | 13,8 | 318 | 13,3 | 11,7 |
| 12×1,5 | 15 | 372 | 13,3 | 9,0 |
| 18×1,5 | 17,6 | 530 | 13,3 | 8,1 |
| 19×1,5 | 17,9 | 535 | 13,3 | 8,1 |
| 25×1,5 | 21,5 | 747 | 13,3 | 6,3 |
| 27×1,5 | 21,2 | 778 | 13,3 | 6,3 |
| 34×1,5 | 23,7 | 974 | 13,3 | 6,3 |
| 36×1,5 | 23,9 | 1003 | 13,3 | 6,3 |
| 2×2,5 | 9 | 130 | 7,98 | 26 |
| 3×2,5 | 9,9 | 162 | 7,98 | 26 |
| 4×2,5 | 11,0 | 205 | 7,98 | 26 |
| 5×2,5 | 12,0 | 248 | 7,98 | 19,5 |
| 6×2,5 | 12,9 | 289 | 7,98 | 19,5 |
| 7×2,5 | 15,5 | 330 | 7,98 | 16,9 |
| 12×2,5 | 18 | 552 | 7,98 | 13 |
| 14×2.5 | 18,3 | 612 | 7,98 | 13 |
| 18×2,5 | 21,5 | 789 | 7,98 | 11,7 |
| 19×2,5 | 21,5 | 804 | 7,98 | 11,7 |
| 25×2,5 | 25,5 | 1123 | 7,98 | 6,8 |
| 36×2,5 | 28,1 | 1489 | 7,98 | 5,9 |
Applications
Used asinterconnecting cable for measuring, controlling orregulation in control equipmentfor assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use when temporarily moved, and in conditions of medium mechanical compulsion.
