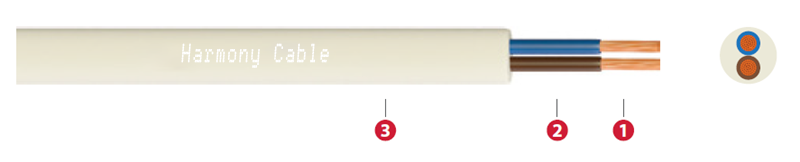

Constructions
| 1-Conductor | Fine-stranded copper (Class 5) |
| 2-Insulation | Polyvinyl chloride (PVC) |
| 3-Outer sheath | Polyvinyl chloride (PVC) |
H03VV-F
Specifications
| Min. bending radius | D≤12 ise 5xD – D>12 ise 6xD |
| Max. operating temperature | 60° |
| Max. short circuit temperature | 150° |
| Rated voltage | 300/300 V |
| AC test voltage | 2 kV |
| Flame propagation test on single cable | EN 60332-1 |
| Lead free | Pb |
Technical Data
| Nominal Cross Section mm² | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max. ohm/km | Current Carrying Capacity in |
| Air (A) | ||||
| H03VV-F (300/300 V) / 218Y | ||||
| 2×0,50 | 5,0 | 36 | 39,0 | 3 |
| 2×0,75 | 5,5 | 46 | 26,0 | 6 |
| 3×0,50 | 5,3 | 43 | 39,0 | 3 |
| 3×0,75 | 5,8 | 54 | 26,0 | 6 |
| 4×0,50 | 5,8 | 53 | 39,0 | 3 |
| 4×0,75 | 6,4 | 68 | 26,0 | 6 |
Applications
Usedas connectioncables, indryandhumidplacesthattherearenotmuchmechanical compulsion whicharegenerallyusedinhouseholdequipments.
